SNAPGRID^® DIRECT-FIT

Using an LED panel without accessories often results in wide, uncontrolled light spread and unwanted spill, especially on backgrounds or lens surfaces. A Direct-Fit SNAPGRID^® narrows the beam, adds directional control, and helps keep the light exactly where you want it—without reducing the softness of the source. It’s a quick way to shape light cleanly, without changing your fixture setup.

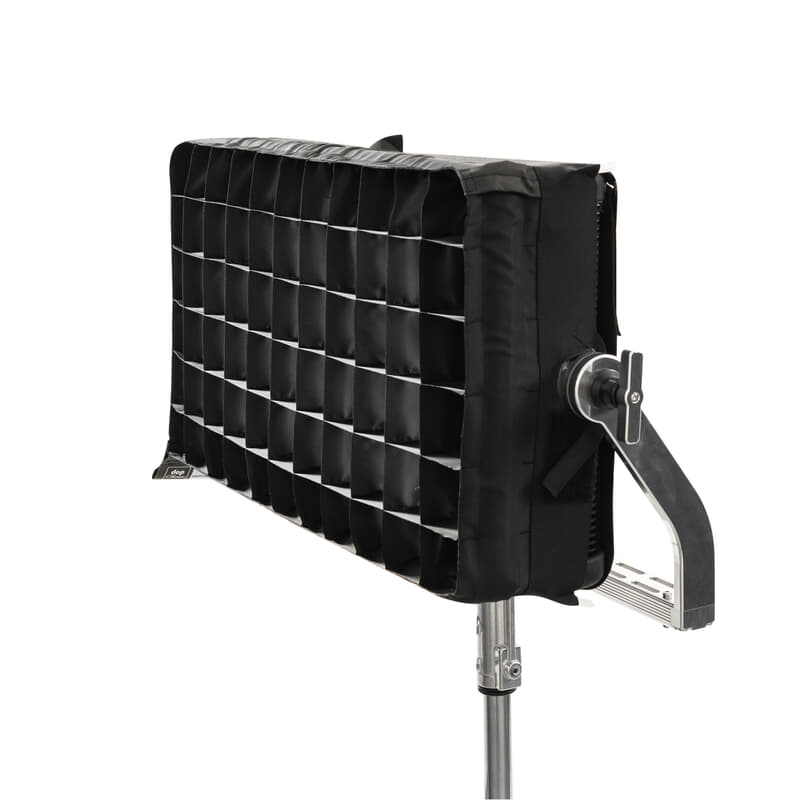

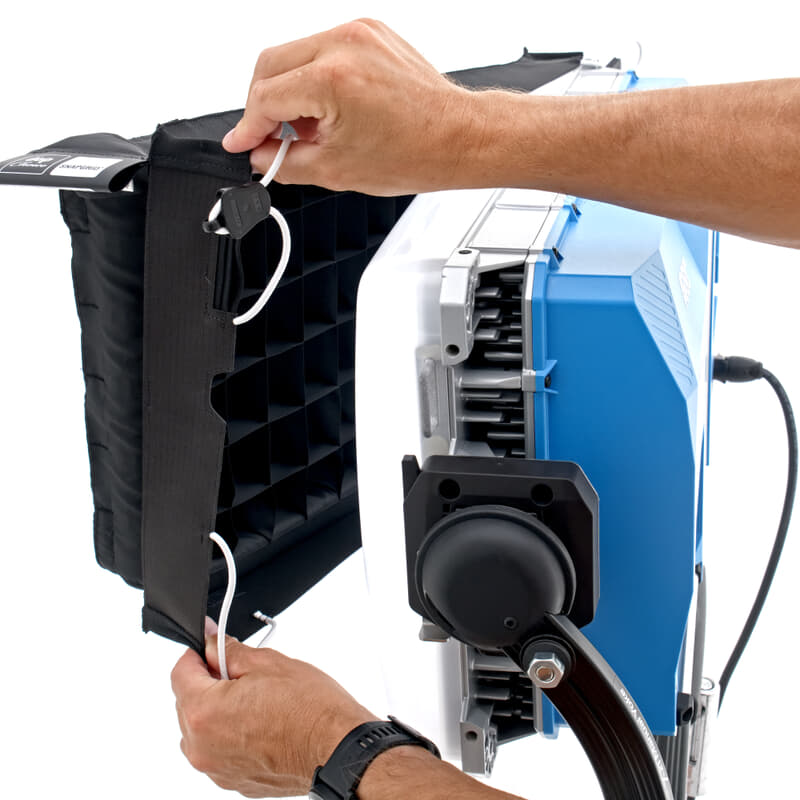

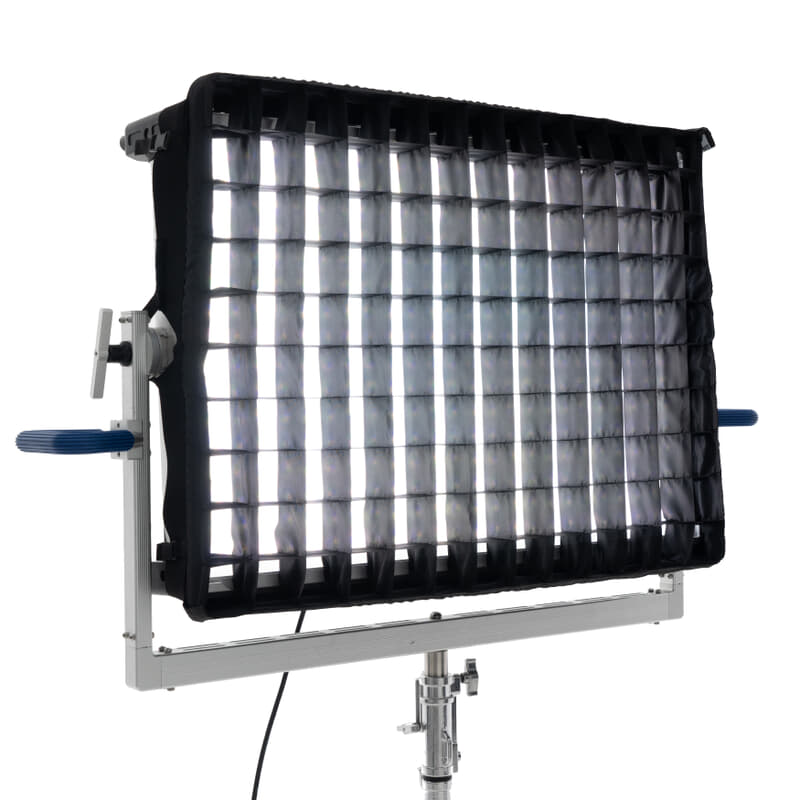

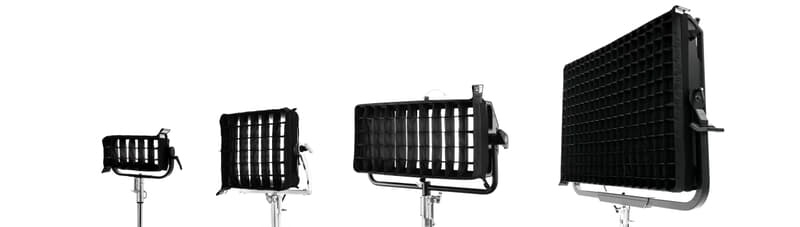

A Direct-Fit SNAPGRID^® attaches directly to the LED panel, offering beam control without altering the size or softness of the light—ideal for tight setups or minimal gear. A Softbox Grid mounts to the front of a softbox, which increases the light’s surface area for a softer output. The Softbox Grid shapes that softer light, while the Direct-Fit Grid shapes a harder or semi-soft source directly from the fixture.

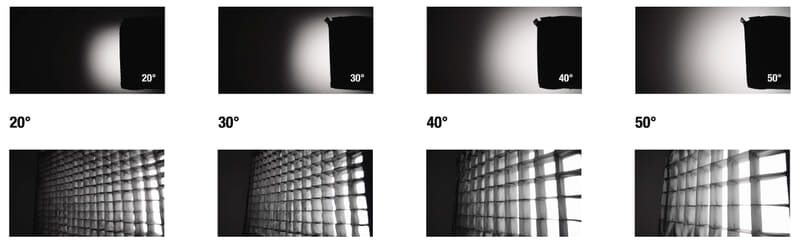

The degree of a frost grid—like 30°, 40°, 50°—refers to the beam angle of the light that’s allowed to pass through the grid.

The Degree = Beam Spread

• A lower number (e.g. 30°) means a narrower beam—more directional, more controlled.
• A higher number (e.g. 50°) means a wider beam—less directional, softer edges.
• 30° = Narrow Spread and Tight control
• 40° = Medium Spread and Balanced, general use e.g. Interviews or portraits
• 50° = Wider Spread and Softer, Subtle shaping, large spaces

If you’re choosing one for your butterfly setup, think: how much spill can you afford?

• Need to control it tightly? Go 30°.
• Need more ambient spread but still shaped? Maybe 50°.

Built from tough, precision-stitched fabric, these grids are made to endure the demands of professional sets—maintaining their shape, tension, and performance over time.

The degree is determined by the size of the cells in the grid, the depth remains constant on all our DoPchoice Grids.

BOX CELL Structure:

Pros:

• More directional control — sharper beam edges
• Less spill
• Tighter geometry — useful for lighting edges, faces, backgrounds
• Often better in windy outdoor setups (if made rigid as all the DoPchoice Grids)

Cons:

• May cast harder shadows if the light is too close
• Less forgiving in flex or odd mounting angles

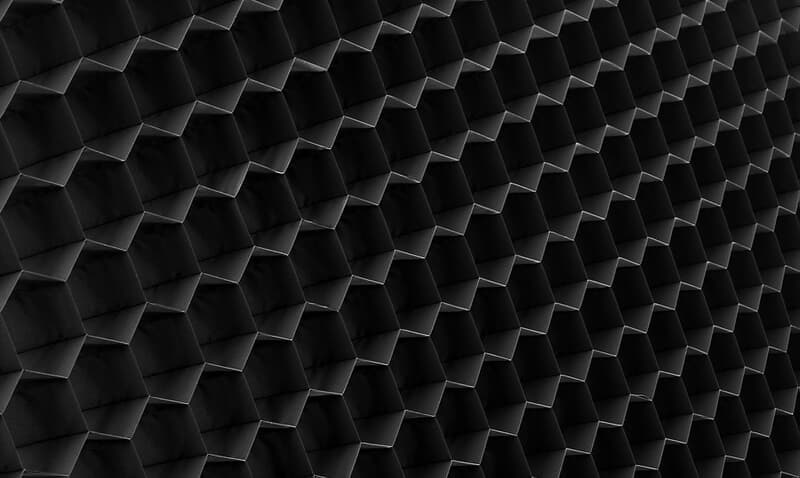

HONEYCOMB Structure:

Pros:

• Smooth light shaping — gentle transitions, organic falloff
• More flexible material (can conform to slightly curved surfaces)

Cons:

• Less rigid in form (especially on large frames)
• Slightly less precise beam control compared to box cells
• Not ideal when ultra-sharp edge control is needed

SQUARE CELL Pattern:

Pros:

• Offers uniform light control in all directions
• Ideal for creating a balanced, even spread of light
• Provides consistent beam shaping regardless of mounting angle
• Works well with square or symmetrical fixtures

Cons:

• May not offer the same directional precision as a rectangular cell pattern
• Can be less effective for controlling light on longer, narrow fixtures or elongated areas

RECTANGULAR CELL Pattern:

Pros:

• Provides more directional control across one axis (longer or narrower beams)
• Great for targeting specific areas, such as backgrounds, edges, or lighting on elongated surfaces
• Ideal for use with rectangular or large-format fixtures, offering precision without wasting light

Cons:

• May create uneven light distribution if not aligned properly
• Less uniform than square cells in certain setups

Disadvantages Interlocking system:

• Less structural rigidity — the grid can sag or deform more easily, especially on large frames (8x8+).
• Edges are weaker — can fray or come apart under tension or over time.
• Setup is fiddlier — you might spend time aligning cells or untangling it.
• Less durable long-term — they don’t like wind or rough handling.

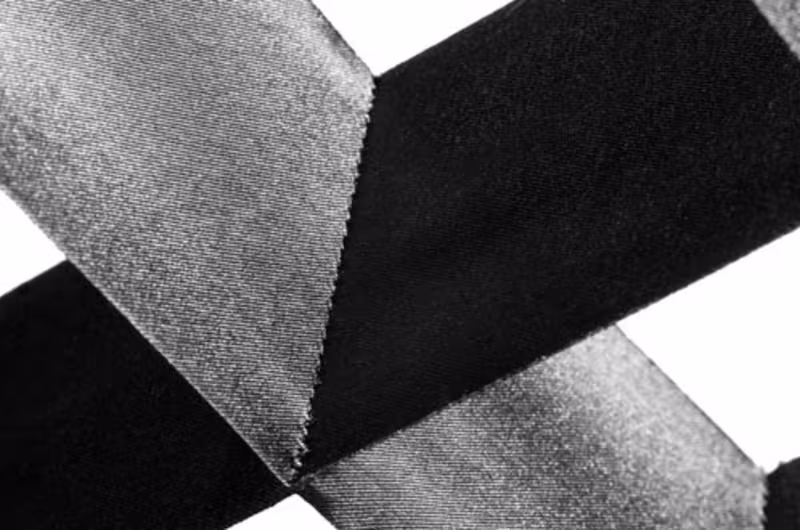

Advantages of the fully sewn cells in every DoPchoice Grid:

• Very stable and precise cell shape — better beam control and cleaner shadows
• Fast setup — unfolds cleanly, no fiddling
• Stronger in wind and movement
• Much more durable — lasts for years, even in rental environments
